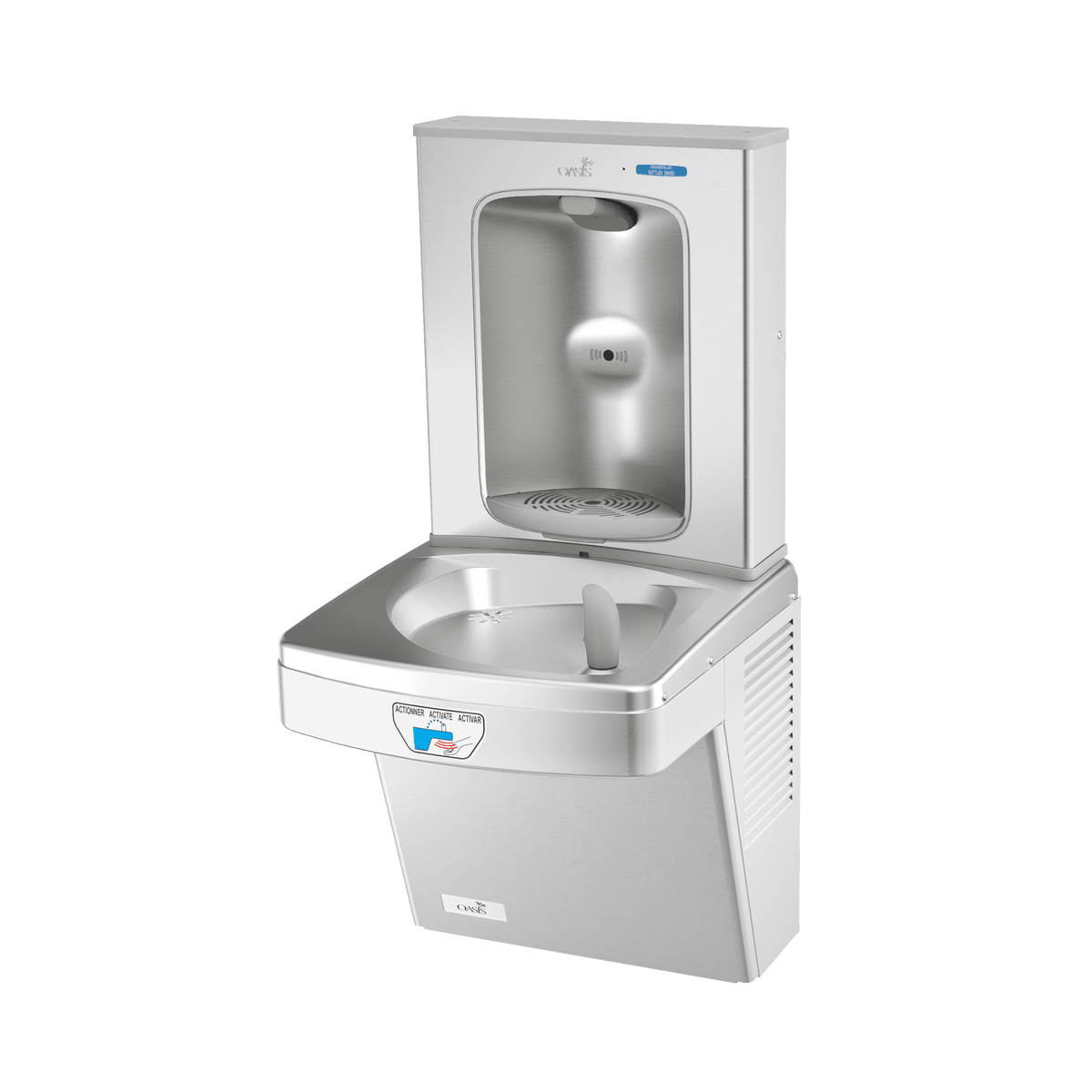

Oasis Contactless Combo On-Wall Mount

Please Note: Excludes Filter System

APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools and offices.

GENERAL INFO
OASIS VersaFiller® Surface-Mounted Hydration Station Combo
The OASIS VersaFiller® hydration station combo is a fully contactless, surface-mounted unit featuring an electronic sensor for hygienic, touch-free activation, along with a 30-second automatic shut-off timer. The integrated drinking fountains are also equipped with infrared sensors beneath the spout, providing easy, contactless operation.

A built-in bottle counter clearly displays the number of bottles refilled, promoting sustainable hydration habits. Key moulded components incorporate Freshield®, a silver-based antimicrobial compound that inhibits the growth of microorganisms and mildew, protecting surfaces against discolouration, odours, and degradation.

The contactless design helps minimise high-touch points, ensuring a safe and hygienic environment.

BOTTLE COUNTER
Displays the number of single-use plastic bottles saved, encouraging eco-friendly habits. Promotes regular refilling of reusable bottles.

FRESHIELD
Silver ion-based antimicrobial protection built into key components. Inhibits microbial growth and mildew, ideal for hygienic environments.

CONTACTLESS ACTIVATION
Provides a hygienic and safe way to access water. Reduces the risk of cross-contamination. Ideal for high-traffic areas.

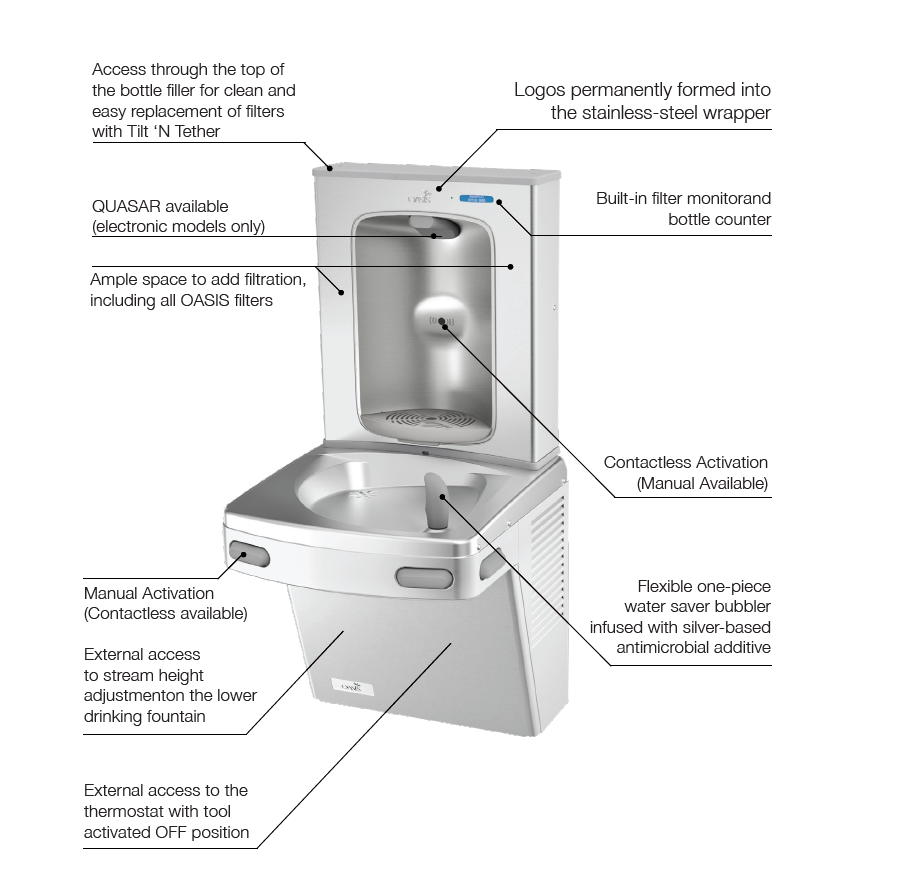

FEATURES | BENEFITS

Bottle Filler

• VersaFiller Bottle Fillers
• Built-in 100 micron strainer
• Large alcove to fit most sports bottles
• Built-in drain – no drip tray to empty
• Water-saver bubbler reduces wastewater by 50%
• High-efficiency cooling tank and coil (Refrigerated model only)
• Energy-efficient refrigeration activates only when in use or when water temperature increases
• Waterways are lead-free in materials and construction
• Heavy-duty galvanised steel frame
• Internal space for optional filtration
• Brushed stainless steel finish
• Programmable automatic shut-off timer

Drinking Fountain

• VersaCooler Drinking Fountain
• Antimicrobial flexible bubbler guard
• Basin designed to eliminate splashing and standing water
• External stream height adjustment
• High-efficiency cooling tank and coil (Refrigerated model only)
• Energy-efficient refrigeration system

CERTIFICATIONS/COMPLIANCE

• Complies with ANSI A117.1 and ADA
• CE certified (LVD, EMC, RoHS)
• ANSI/NSF 61
• ADA compliant for both adult or child when properly installed

ADDITIONAL OPTIONS

• Remote Chiller
• Filtration System (internal/external)
  *Filters reduce sediment, chemicals, and impurities that affect water quality and taste.

MODEL CODE: P8EBFTY 504959 + 507023
Activation: Contactless (Infrared sensor)
Sensor Coverage: Up to 5 cm
Filtration: Green Filter (optional), Built-in 100 micron strainer
Disinfection: Quasar UVC-LED (optional)
Auto-Off Water Flow: Bottle Filler – Yes; Drinking Fountain – No
Drainage Type: Built-in drain, Removable drip tray
Exterior: Antimicrobial ABS Plastic, Brushed Stainless Steel
Chassis: Heavy Duty Galvanised Steel
Dimensions: 960(H) x 413(W) x 473(D) mm
Alcove Height: 330 mm
Net Weight: 16 kg
Power Supply: 220-240V, 50/60 Hz
Cooling Performance: 60 LPH @ 10°C in 21°C ambient
Full Load Amps: 2.2 A
Rated Watts: 450 W
Energy System: Refrigeration activates only when in use or when water temperature increases during standby
Country of Origin: Mexico
Certifications: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS), WRAS
Warranty: 1 Year
