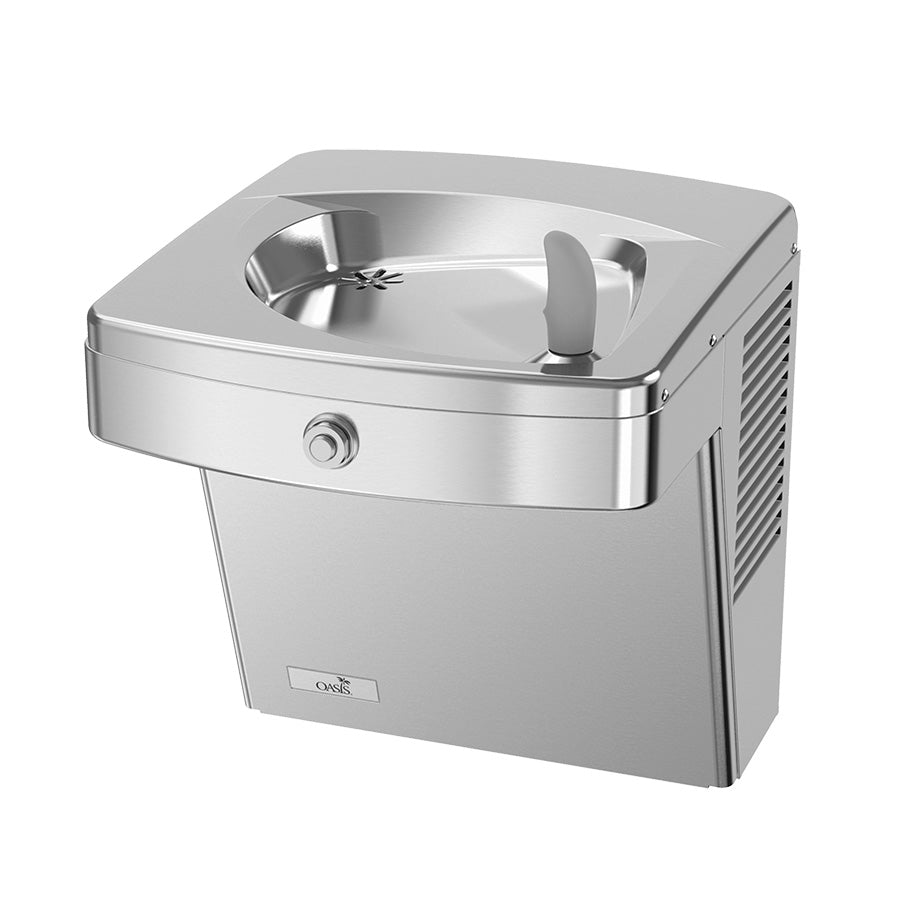

Oasis VersaCooler Vandal Resistant Wall-Mounted Drinking Fountain.

Please Note: Excludes Filter System

APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools and offices.

GENERAL INFO
Versacooler  is a Vandal Resistant Wall-Mounted Drinking Fountain.

These surface mount drinking fountains are manually activated via the vandal-resistant touch-button.

Key Versacooler moulded components contain Freshield, which utilises a silver-based antimicrobial compound that reduces the growth of micro-organisms and mildew, protecting the surfaces from discolouration, odours, and degradation.

FRESHIELD
Freshield antimicrobial protection is engineered into key components, specifically moulded for durability. Utilising a silver ion-based antimicrobial compound, Freshield reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. This additional layer of hygiene is ideal for environments where health and cleanliness are critical.

FEATURES | BENEFITS

• Manually Activated Vandal Resistant Drinking Fountain
• PV8ACY delivers 60 litres of chilled drinking water an hour
• Vandal resistant mechanical front push button activation
• Built-in 100 micron strainer stops particles before they enter the waterway
• ADA compliant for both adult or child when properly installed
• Waterways are lead-free in materials and construction
• Stainless steel top
• Basin is designed to eliminate splashing and standing water
• Water-saver bubbler reduces wastewater by 50%
• Antimicrobial vandal-resistant bubbler keyed into position with flexible guard
• External stream height adjustment
• Heavy duty galvanised steel frame
• Galvanised steel louver and bottom screen
• Vandal resistant fasteners
• High efficiency cooling tank and coil
• Energy-efficient refrigeration system powers ‘ON’ only when in use or if water temp increases during long period of standby

CERTIFICATIONS / COMPLIANCE

• Complies with ANSI A117.1 and ADA
• Complies with all relevant CE directives (LVD, EMC, RoHS)
• Complies with ANSI/NSF 61

TECHNICAL SPECIFICATIONS

MODEL CODE: PV8ACY & PVAC

ACTIVATION: Mechanical (Vandal-Resistant touch-button)

FILTRATION: Green Filter (optional), Built-in 100 micron strainer
DISINFECTION: Ultra Blu V (optional)
AUTO-OFF WATER FLOW: No
DRAINAGE TYPE: Built-in drain

EXTERIOR: Antimicrobial ABS Plastic, Brushed Stainless Steel
CHASSIS: Heavy Duty Galvanised Steel
DIMENSIONS: 480(H) x 448(W) x 473(D) mm

NET WEIGHT:
PV8ACY: 27 kg
PVAC: 11 kg

POWER SUPPLY: 220-240V, 50/60 Hz

COOLING PERFORMANCE:
PV8ACY: 60 LPH Rated Capacity & Base Rate
PVAC: Non-Refrigerated (10°C in 21°C amb. temp.)

FULL LOAD AMPS:
PV8ACY: 2.2A
PVAC: –

RATED WATTS:
PV8ACY: 450 W
PVAC: –

ENERGY SYSTEM: Refrigeration is on only when in use or if water temp increases during long period of standby

COUNTRY OF ORIGIN: Mexico
CERTIFICATIONS: ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS)
WARRANTY: 1 Year
