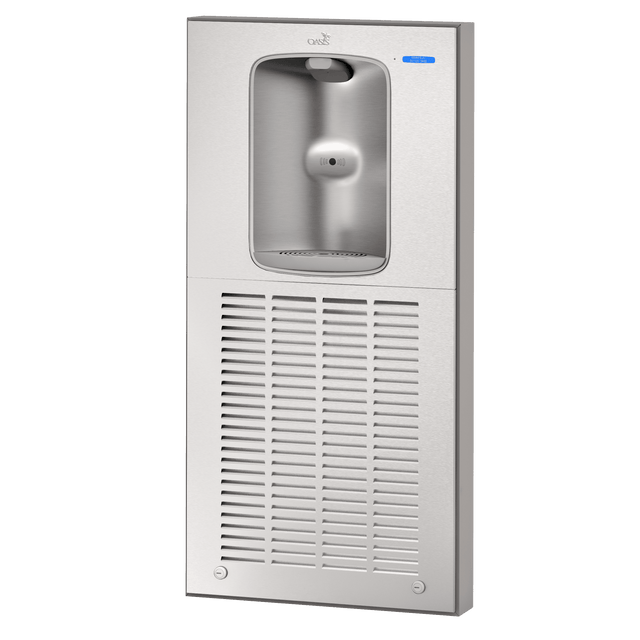

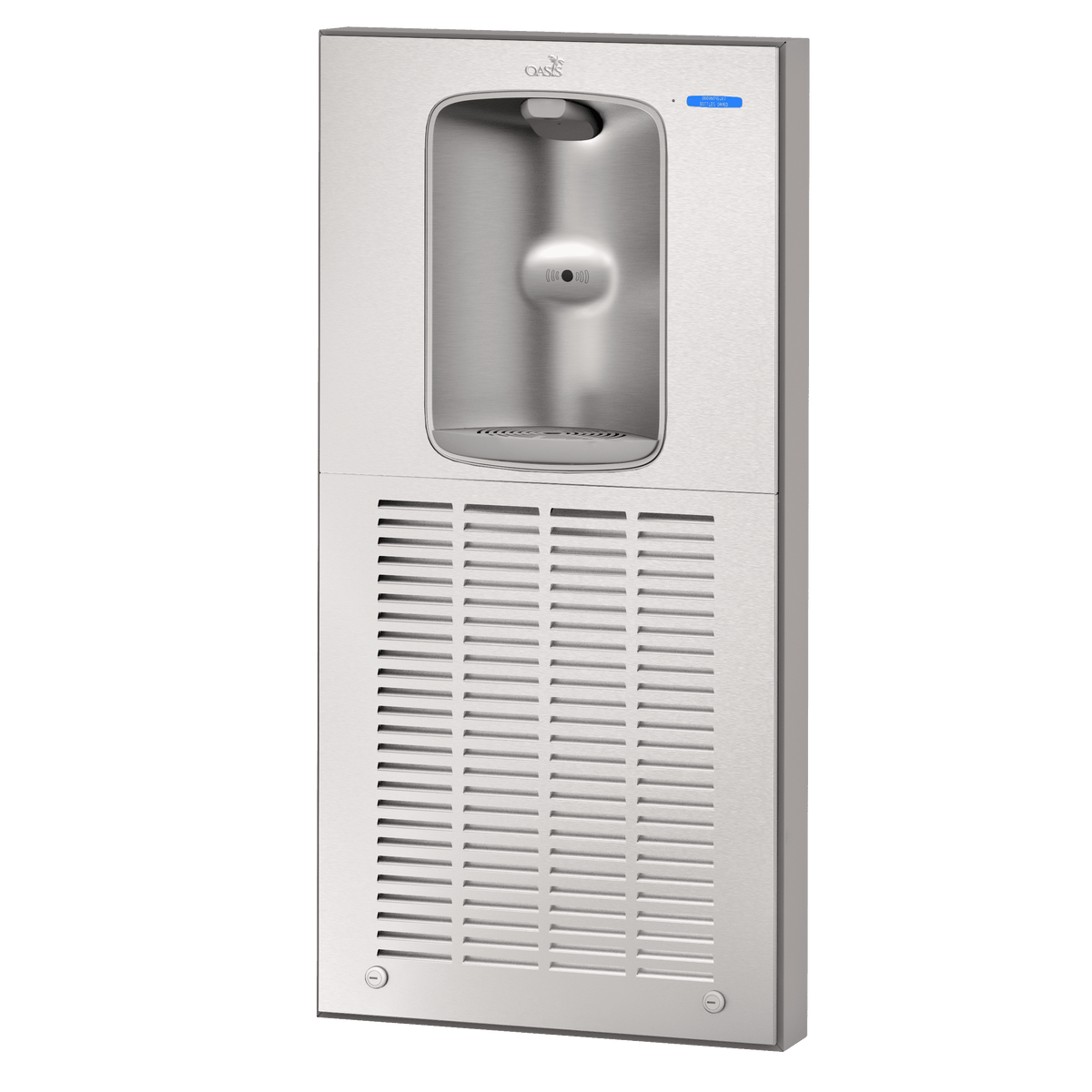

Oasis AquaPointe Contactless Bottle Filler, On-A-Wall Surface Mount

APPLICATIONS
Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.

GENERAL INFO
This surface-mounted bottle filler features an electronic sensor for convenient, contactless (touch-free) activation, along with an automatic 30-second shut-off timer. It also includes a bottle counter, clearly displaying the number of bottles filled, encouraging users to refill reusable sports bottles. Key moulded components of the AquaPointe unit incorporate Freshield, a silver-based antimicrobial compound that inhibits the growth of microorganisms and mildew, protecting surfaces against discolouration, odours, and degradation.

BOTTLE COUNTER
The Bottle Counter (included) conveniently displays the number of single-use plastic bottles saved by using the dispenser, encouraging eco-friendly habits and highlighting your commitment to environmental responsibility. Available in electronic bottle fillers, this real-time counter promotes regular refilling of reusable sports bottles, reducing plastic waste.

FRESHIELD
Freshield antimicrobial protection is engineered into key components, specifically moulded for durability. Utilising a silver ion-based antimicrobial compound, Freshield reduces the growth of microorganisms and mildew, protecting surfaces from discolouration, odours, and degradation. This additional layer of hygiene is ideal for environments where health and cleanliness are critical.

CONTACTLESS ACTIVATION
Contactless activation provides a hygienic, convenient, and safe way to access clean drinking water. By removing the need for physical touch, it significantly reduces the risk of cross-contamination. This touch-free feature is especially beneficial for high-traffic areas, ensuring users can access drinking water safely and confidently every time.

FEATURES | BENEFITS

• Sleek, contemporary design
• Enhanced alcove to fit larger sports bottles
• Contactless activation with shut-off timer
• The integrated bottle counter conveniently tracks and displays the number of refills
• Key AquaPointe bottle filler moulded components contain Freshield
• Built-in drain – no drip tray to empty
• Built-in 100 micron strainer stops particles before they enter the waterway
• Waterways are lead-free in materials & construction
• Heavy-duty steel frame
• Non-Refrigerated – delivers Ambient Water
• Built-in panel locks for easy access to chiller and filtration

CERTIFICATIONS / COMPLIANCE
Together with ISO 9001:2015 and ISO 14001:2015, our lean manufacturing and system approach and well-trained staff continue our industry heritage.

• Complies with ANSI A117.1 and ADA
• CE compliant (LVD, EMC, RoHS)
• ANSI/NSF 61 certified

TECHNICAL SPECIFICATIONS

Model Code MW8SMEBFY, MWSMEBFY
Activation Contactless (Infrared Sensor)
Sensor Coverage Up to 5 cm (approx.)
Filtration Green Filter (optional), Built-in 100 micron strainer
Disinfection Not included
Auto-Off Water Flow Yes
Drainage Type Built-in drain, Removable drip tray
Exterior Material Antimicrobial ABS Plastic, Brushed Stainless Steel
Chassis Heavy Duty Galvanised Steel
Cooling Performance MW8SMEBFY only: 60 LPH Rated Capacity & Base Rate (10°C in 21°C ambient temp)
Full Load Amps 2.2A
Rated Watts MW8SMEBFY: 347 W, MWSMEBFY: 7 W
Net Weight MW8SMEBFY: 35 kg, MWSMEBFY: 12 kg
Power Supply 220-240 V, 50 Hz
Dimensions 1051(H) x 530(W) x 150(D) mm (198 mm recessed for chiller)
Country of Origin Mexico
Certifications ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC)
Warranty 1 Year
