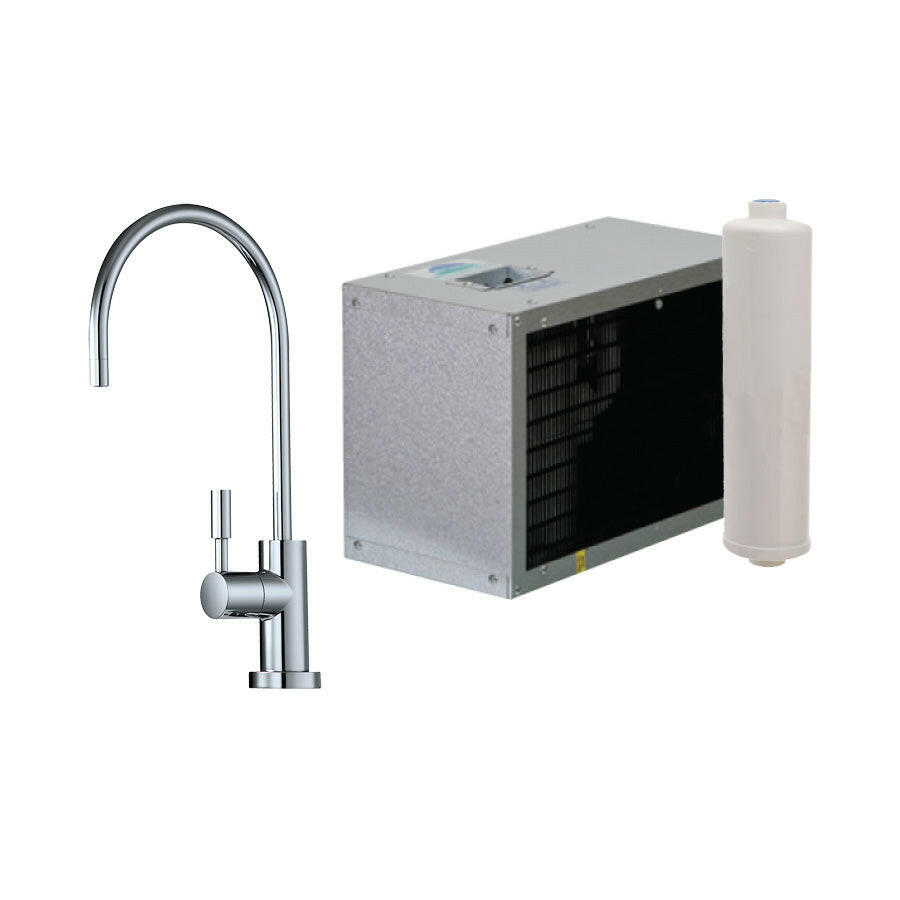

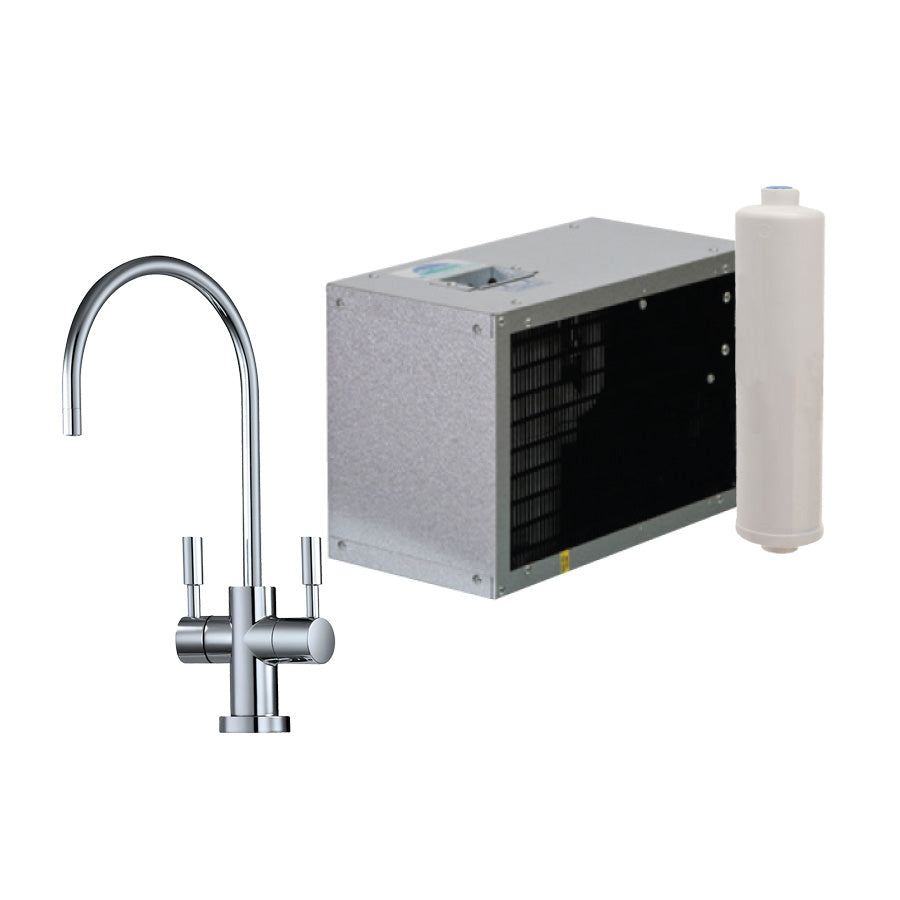

Waterworks Under Bench Inline Chiller System

UBIC-T / UBIC-T2W

Under Bench Inline Chiller – Cold Only (Includes UBIC-KIT)

FEATURES & BENEFITS:

Tap:

• Delivering clean, pure, great tasting filtered water

• Stylish tap to complement any kitchen

• Operates with one 90° turn

• Commercial Grade Technology

Chiller:

• Ideal for under-bench or small spaces

• Waterways are made from Lead-Free and Stainless Steel materials and construction

• Made of Heavy-Gauge Steel
• Lead and copper-free waterways

• 1.9 litre stainless steel chilling tank

• 8 Litres/hour cooling capacity

• Stainless steel internal waterways

• Powder coated corrosion resistant cabinet

• 8 cup initial draw-off

• Dual, fan-assisted static condensers

• 3-year comprehensive warranty

• Easy to install

With its 8 litres per hour cooling capacity, the Waterworks Under Bench Inline Chiller is proof that good things come in small packages. Due to the compact design, energy efficiency and quiet operation the Under Bench Inline Chiller is the obvious choice for household applications and offices
alike.

SPECIFICATIONS

CABINET:
The cabinet is a corrosion resistant, high polymer polyester coated steel panel.

COLD WATER TANK:
1.9 litre fully insulated, 304 stainless steel tank. The drain plug and seal are removable for servicing.

REFRIGERATION SYSTEM: This fan assisted, static condenser system utilises R134a refrigerant which is non toxic, non-flammable and non ozone depleting. Refrigerant flow is controlled by capillary tube, which has no moving parts. The compressor is protected by an automatic overload, is lifetime lubricated and hermetically sealed.

INSTALLATION

GENERAL:

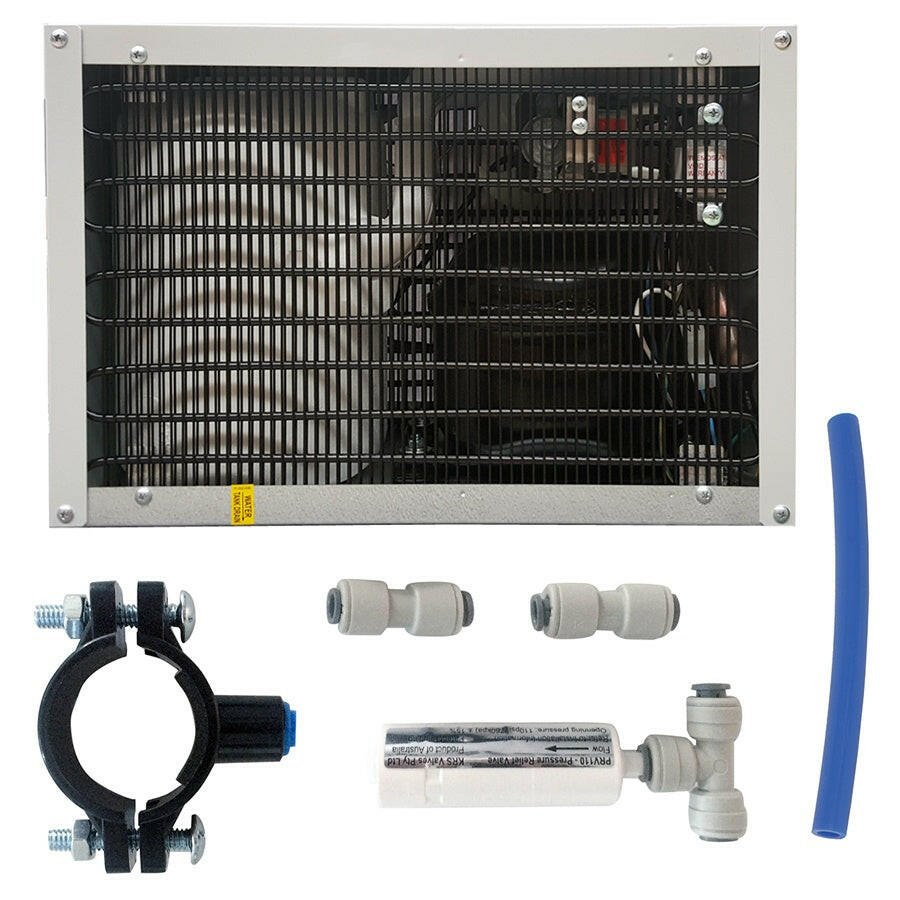

The Waterworks™ lC8 can be installed in small spaces with adequate ventilation, and can be used in conjunction with most inline filter systems. The IC8 must be professionally installed with either a vented tap or
with the included kit which contains a pressure reducing
valve (PRV), pressure limiting valve (PLV), shutoff valve,
stainless steel connectors and a drain clamp.

PLUMBING CONNECTIONS:
Both the inlet and outlet are recessed ¼” stainless steel pipes. Quick connect stainless steel fittings are included in the above mentioned installation kit.

ELECTRICAL:
Certificate number 202240. 220-240v 50hz single phase. Full load current is .8 amps. 1.5 metre power cord is supplied.

COOLING PERFORMANCE:

•  8 litres per hour at 8-10°C

• Cooling Speed: From 27°C to 8°C in 20 minutes

• Draw Off Capacity: 8 cups (150ml) below 10°C

To be installed in accordance with local plumbing laws. Failure to install a certified Pressure Limiting Valve will void warranty.

NETT DIMENSIONS

• WEIGHT: 12.5kg
• WIDTH: 21cm
• DEPTH: 41cm
• HEIGHT: 28cm

PACKED DIMENSIONS

• WEIGHT:14kg
• WIDTH:23cm
• DEPTH: 46cm
• HEIGHT: 30cm

UBIC

Under Bench Inline Chiller – Cold Only (Includes UBIC-KIT)

FEATURES & BENEFITS:

• Tap:
  • Delivering clean, pure, great tasting filtered water
  • Stylish tap to complement any kitchen
  • Operates with one 90° turn
  • Commercial Grade Technology
• Chiller:

  • Ideal for under-bench or small spaces

  • Waterways are made from Lead-Free and Stainless Steel materials and construction

  • Made of Heavy-Gauge Steel
  • Lead and copper-free waterways

  • 1.9 litre stainless steel chilling tank

  • 8 Litres/hour cooling capacity

  • Stainless steel internal waterways

  • Powder coated corrosion resistant cabinet

  • 8 cup initial draw-off

  • Dual, fan-assisted static condensers

  • 3-year comprehensive warranty

  • Easy to install

With its 8 litres per hour cooling capacity, the Waterworks Under Bench Inline Chiller is proof that good things come in small packages. Due to the compact design, energy efficiency and quiet operation the Under Bench Inline Chiller is the obvious choice for household applications and offices
alike.

SPECIFICATIONS

CABINET:
The cabinet is a corrosion resistant, high polymer polyester coated steel panel.

COLD WATER TANK:
1.9 litre fully insulated, 304 stainless steel tank. The drain plug and seal are removable for servicing.

REFRIGERATION SYSTEM: This fan assisted, static condenser system utilises R134a refrigerant which is non toxic, non-flammable and non ozone depleting. Refrigerant flow is controlled by capillary tube, which has no moving parts. The compressor is protected by an automatic overload, is lifetime lubricated and hermetically sealed.

INSTALLATION

GENERAL:
The Waterworks™ lC8 can be installed in small spaces with adequate ventilation, and can be used in conjunction with most inline filter systems. The IC8 must be professionally installed with either a vented tap or
with the included kit which contains a pressure reducing
valve (PRV), pressure limiting valve (PLV), shutoff valve,
stainless steel connectors and a drain clamp.

PLUMBING CONNECTIONS:
Both the inlet and outlet are recessed ¼” stainless steel pipes. Quick connect stainless steel fittings are included in the above mentioned installation kit.

ELECTRICAL:
Certificate number 202240. 220-240v 50hz single phase. Full load current is .8 amps. 1.5 metre power cord is supplied.

COOLING PERFORMANCE:

•  8 litres per hour at 8-10°C

• Cooling Speed: From 27°C to 8°C in 20 minutes

• Draw Off Capacity: 8 cups (150ml) below 10°C

To be installed in accordance with local plumbing laws. Failure to install a certified Pressure Limiting Valve will void warranty.

NETT DIMENSIONS

• WEIGHT: 12.5kg
• WIDTH: 21cm
• DEPTH: 41cm
• HEIGHT: 28cm

PACKED DIMENSIONS

• WEIGHT:14kg
• WIDTH:23cm
• DEPTH: 46cm
• HEIGHT: 30cm
