OASIS® Quasar Versafiller® With Versacooler® Electronic Contactless Hydration Station Combo

FEATURES | BENEFITS

• Contactless (Touch Free) Surface Mount Bottle Filler
• Hands-free Quasar with mercury-free UVC-LED treatment at the dispense point
• Hands-free activation with shut-off timer. Built-in bottle counter, filter monitor, and programmable time-out feature
•  Large Alcove to fit most sports bottles
•  Energy-efficient LED’s illuminate alcoves and aid’s bottle-filling
•  Built-in drain - no drip tray to empty Contactless (Touch Free) Drinking Fountain
•  Drinking Fountain delivers 60 liters of chilled drinking water an hour
•  The basin is designed to eliminate splashing and standing water
•  Water-saver bubbler reduces waste water by 50%
•  Antimicrobial flexible bubbler guard
•  External stream height adjustment
•  High-efficiency cooling tank and coil
•  Energy-Efficient refrigeration system powers ‘ON’ only when in use or if water temp increases during a long period of standby
•  Heavy-duty galvanised steel frame
•  Built-in 100-micron strainer stops particles before they enter the waterway
•  Waterways are lead-free in materials and construction

APPLICATIONS

Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools, and offices.

GENERAL INFO

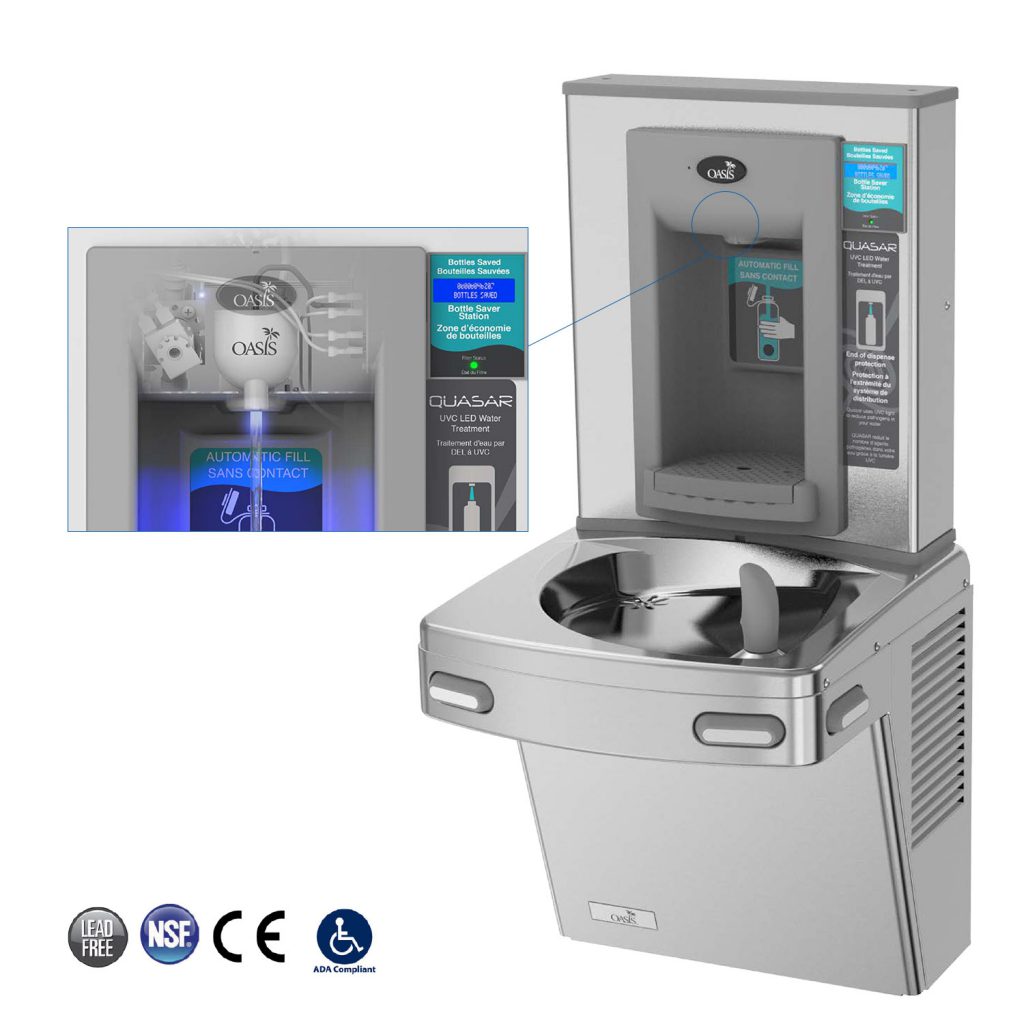

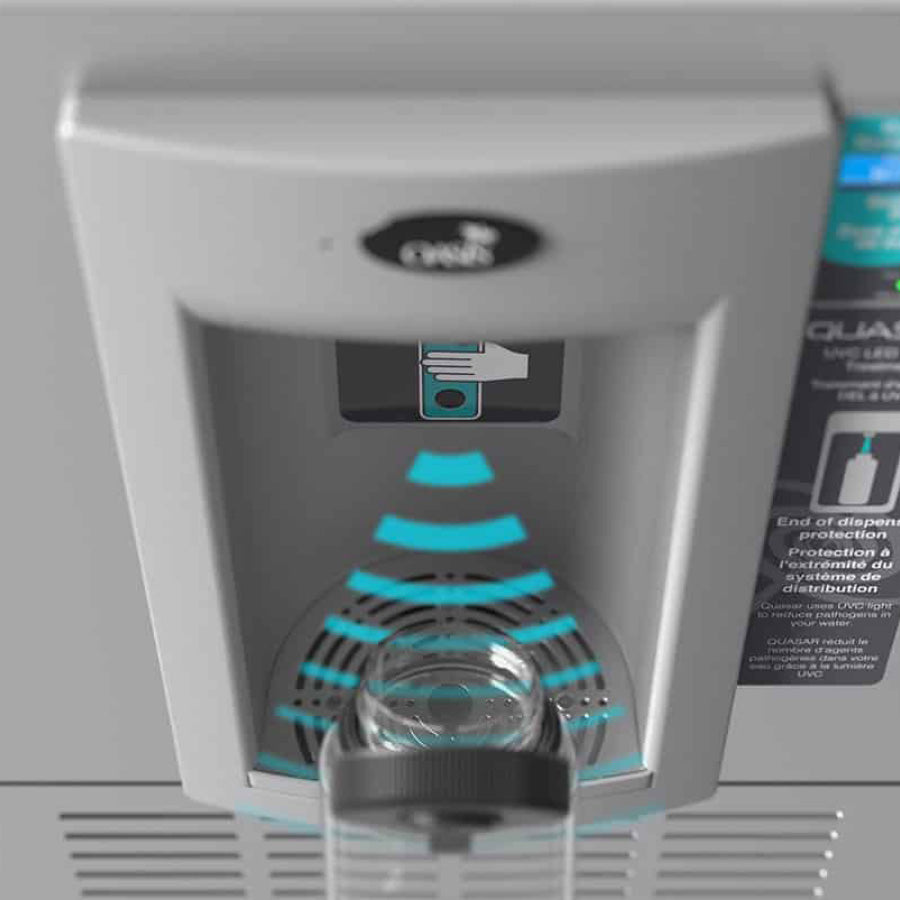

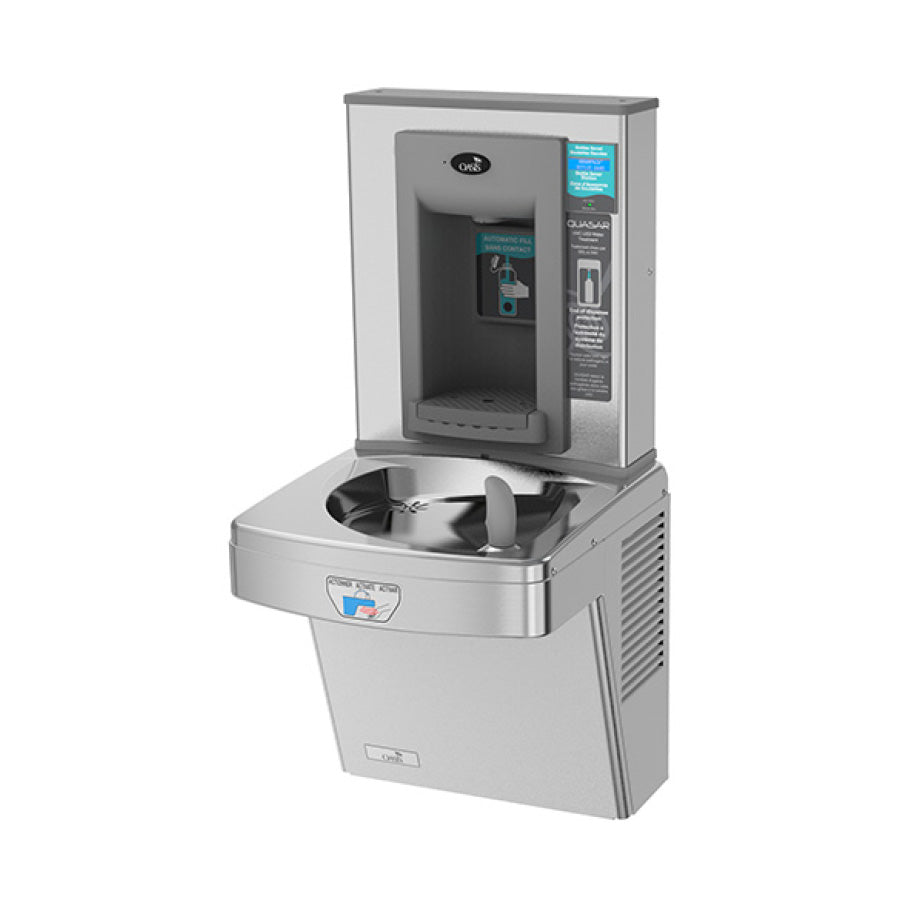

The Oasis QUASAR P8EBQTY is a contactless, surface-mount bottle filler with a contactless, refrigerated drinking fountain. The VERSAFILLER® contactless bottle filler includes an electronic sensor for a no-touch activation and a 30-second shut-off timer. Quasar bottle filler operates with UVC-LED treatment at the dispense point, which disinfects the water while it is being dispensed. UVC-LED also cycles on periodically to keep the dispense-point sanitised between dispenses.

Key VERSAFILLER® bottle filler moulded components contain Freshield®, which utilises a silver-based antimicrobial compound that reduces the growth of micro-organisms and mildew to protect the surfaces from discolouration, odours and degradation. The contactless drinking fountain delivers 60LPH of 10°C water at 21°C ambient when activated, via its electronic sensor below the nose. The water-saving bubbler reduces waste water by 50%, has a flexible guard, and operates between 1.3 and 6.9 Bar. The basin is designed to eliminate splashing and standing water.

CERTIFICATIONS/COMPLIANCE

Complies with ANSI A117.1, CABO/ANSI A117.1, and ADA. Complies with all relevant CE directives (LVD, EMC, RoHS). Complies with ANSI/NSF 61.

ADA-compliant for both adults or child when properly installed
